Item specifics
  • Type: Slide
  • DIY Supplies: Metalworking
Product Description

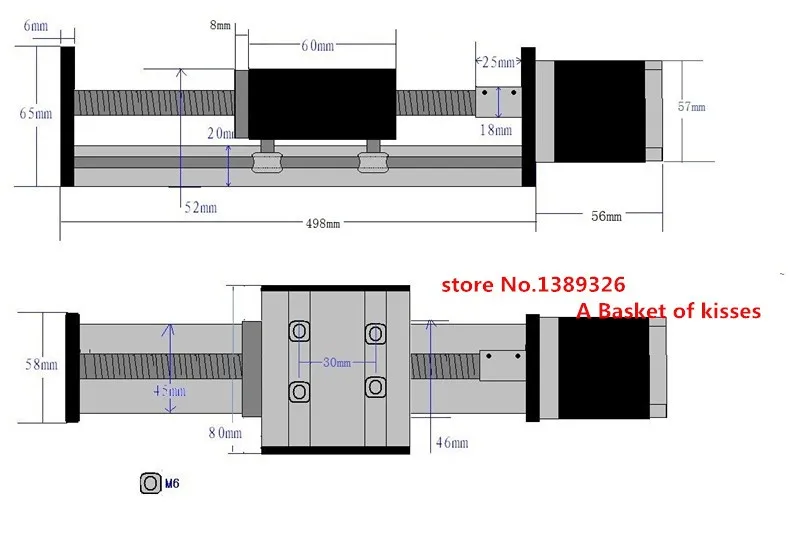

57 ball screw linear guide slider type in Longmen
The length of the four axes Y=500 Z=200MM X=400+400
Linear guide rail information:
57 linear guide slider, high precision ball screw, precision can reach 0.01mm;
Effective stroke from 100mm-2000mm, can also be customized.
There are three kinds of screw diameter specifications:
One, 1204 is the lead screw diameter 12mm guide 4mm (commonly used)
Two, 1605 that is lead screw diameter 16mm guide 5mmCharacteristics of linear guide railThe horizontal load is 56kg, the vertical load 15kg, the 1204 lead screw speed is 1-40mm/s adjustable; the 1605 lead screw speed is 1-50mm/s adjustable
Four, 1 direction load force
Guide rail rolling body is designed as a special pressure angle, the radial and anti radial and horizontal direction under equal load of horizontal bearing capacity of 50kg vertical carrying 10kg
2, high rigidity, high load
The guide rail uses the special four row circular arc groove design, increases the contact area, the relative two sides row type trench to bear the load capacity, the contact stiffness and the system rigidity are greatly improved.
3, high precision
The guide rail adopts high precision special plane surface grinding, laser detection and so on.
The method is easy to ensure the manufacturing precision of the guide rail.
4, smooth, low noise, no pollution, environmental protection
Guide rail return to the use of special synthetic resin production of backward, guiding system, and has a special return to the system design, which can be up to a smooth and low noise linear motion.
5, structural miniaturization
The end face and the rigidity of the guide rail reach the optimum design, the end face is small and the rigidity is big, so the purpose of the machine tool miniaturization can be realized.
contact information;





Packaging Details
  • Unit Type: piece
  • Package Weight: 15.0kg (33.07lb.)
  • Package Size: 60cm x 60cm x 30cm (23.62in x 23.62in x 11.81in)
