Item specifics
  • is_customized: Yes
  • Model Number: 2.5m 25x25x1000mm
  • Type: rack
Product Description

CNC Rack Gear Mod 2.5 Steel Right Teeth 25 x 25mm Length in 1000mm cnc machine



Details

Brand: SHEETHAO
Product Name: 1.5-5 mold rack
Material: 45 # steel
Product application: all kinds of machinery and equipment rail use
Specifications: he * s * l(mm)
                  1.5m 20 * 20 * 1000
                  1.5m 15 * 15 * 1000
                    2m  20 * 20 * 1000
                  2.5m 25 * 25 * 1000
                   3m  30 * 30 * 1000
                   4m  40 * 40 * 1000
                   5m  40 * 40 * 1000
                   5m 50 * 50 * 1000
Features: 45 steel quenched hardness and smoothness, attention this product is not quenched, quenched demanding customers need to us, need add USD 4/meter
"Modulus" is the ratio of two teeth adjacent to the same side of the teeth between the tooth profile and the pitch t of the pi π
      m (modulus) = t (pitch) / π (3.14)
      Tip diameter D = number of teeth Z +2 * modulus M
         Gear pitch = 3.14 *  modulus M
         Gear depth = 2.25 * modulus M

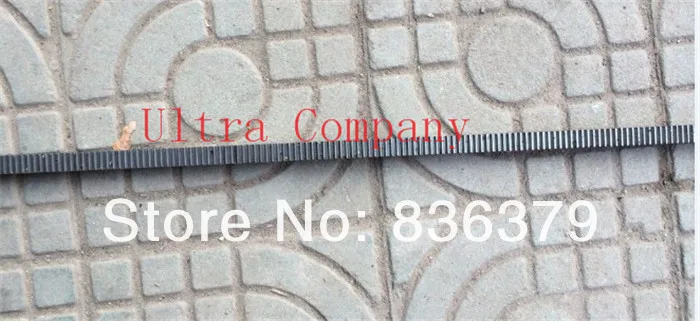

 Product Front View

Product Side View

Quenching effect (need extra charge USD4/pc)

3 (2).jpg

Semi-toothed rack effects (custom required)

Match effect

Tips

1,  Our company produces gear rack are 45 # steel, except in addition to custom.

2, Gear rack and pinion since it is a steel manufacturing,  stock can not sale our in one day, over time  the surface will rust, but this does not affect the use, if you mind pls dont buy it.
3, 1.5 analog gear, stock is 17mm thickness,  please note.
4, Gear teeth has high-frequency quenching, hardness, rack tooth portion does not quench, quenching need to add USD 4/meter.

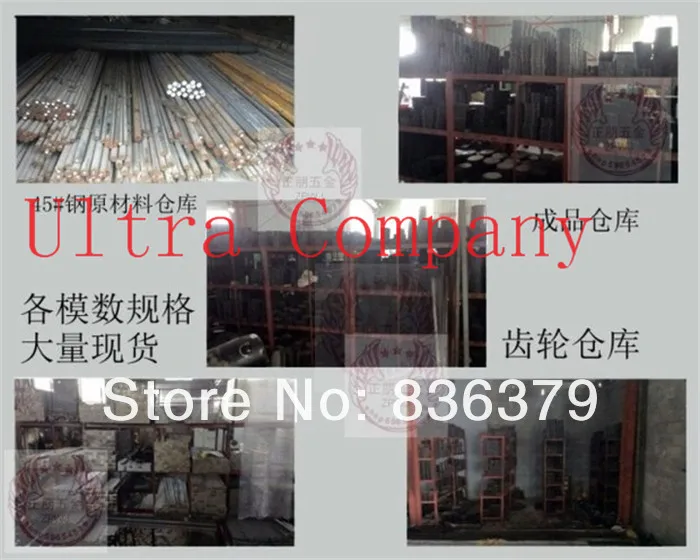

Our Company
